| Machine Tools - Precision Belt Driven Lathes |
|
|

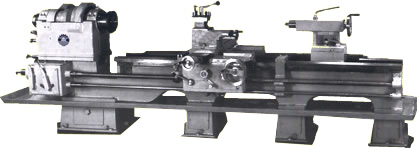

| Precision Belt Driven Lathes |
|
- Precision
- Heavy Duty
- Productive
- Economical
|
|
| Features : |
- Bed is made from closed grain cast iron. Grade IS-20 Hardened & Ground.
- Spindle is made form alloy steel & its Hardened & Ground.
- Apron is fully oil bath.
- Gear & Shaft of Norton gear box are made from alloy Steel & are toughened.
- All wearing surfaces of rotating parts are made of gun metal.
- Bed casting single piece upto 32'.
- Spindle hollow available 52mm to 200mm.
|
 |
SPECIFICATIONS/MODEL |
H |
EH |
XH |
XXH |
| Height of Centre |
255 |
305 |
380 |
450 |
| Width of Bed |
325 |
380 |
455 |
555 |
| Swing over Cross Slide |
290 |
400 |
490 |
600 |
| Swing over Bed |
480 |
580 |
710 |
840 |
| Swing in Gap |
785 |
885 |
1150 |
1300 |
| Width of Gap in front |
| of Face Plate |
200 |
200 |
300 |
300 |
| Spindle Hollow |
52 |
65 |
80 |
104 |
| Spindle Speeds Nos./Range(rpm in G.P.) |
| Brass type |
8/30-550 |
8/30-550 |
8/30-550 |
8/30-550 |
| Bearing type |
8/40-700 |
8/40-700 |
8/40-400 |
8/40-400 |
| Type of Drive(Std.) |
Flat belt |
Flat Belt |
Flat Belt |
"V" Belet |
| Optional |
V-Belt |
V-Belt |
V-Belt |
- |
| Section |
C |
C |
C |
C |
| Lead Screw |
| Dia/Thread(TPI) |
38.1/4 |
38/1.4 |
50/8.2 |
50/8.2 |
| Full Norton: Number of Thread/Range |
|
|
|
|
| Metric |
17/0.5-15 |
17/0.5-15 |
19/1-30 |
19/1-30 |
| Inch |
48/2-60 |
48/2-60 |
41/1-30 |
41/1-30 |
| Auto Feeds: (in full Norton) |
| Longitudinal(mm/rev) |
0.065 to 2.0 |
0.065 to 2.0 |
0.078 to 2.340 |
o.o78 to 2.340 |
| Cross (mm/rev) |
0.015 to 0.048 |
0.015 to 0.048 |
0.015 to 0.048 |
0.015 to 0.048 |
| Tailstock Ram Dia |
50.8 |
63.5 |
76.2 |
101.6 |
| Morse Taper in Ram |
MT-4 |
MT-4 |
MT-5 |
MT-6 |
| Ram Travel |
200 |
200 |
250 |
250 |
| Electricals required |
3 HP |
3 HP |
5 HP |
5 HP |
| RPM |
1440 |
1440 |
1440 |
1440 |
| Tool Shank |
25 |
25 |
32 |
32 |

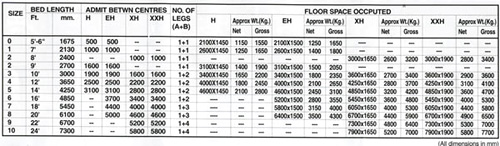

(All diamensions in mm) |
|
| |
| Standard Accessories : |
| Dog Plate, Four position Tool Post & Spanner, 2 Nos.Dead Centres, Centre Adaptor, Oil Tray, Change Gear Set (for inch & mm), Thread dial indicator, Motor Pulley, Nylon Flat Belt/ "V" Belts (for Headstock), Spanner Set & Instruction Manual. |
| Optional Accessories : |
Hardened & Ground Bedways, Bearing type Spindle, Increase in Spindle bore (in steps of 2"), V-Belt Drive, Taper Turning Attachment, Coolant Pump with tank & Splash Guard, Rear Tool Post with extended cross Slide (for H & EH only), Full Norton Gear Box, Machine Lamp, Electricals(with ISI mark) with suitable Switches & Junction Box, Revolving Centre, Pipe Centre, Tool Post Grinder, Carrier Plate, Face Plate, Pin type Steady Rest, Bearing type Steady Rest, Follow Rest, True Chuck & Dog chuck, Beam Packing/Full Packing.
|
Notes: Due to technological developments, the illustrations and specifications are not binding in detail and are subject to modification & improvement without prior notice.
We can also provide Modular Lathes fo Roll Turning of heavy jobs weight 25 Tonnes and above. |
| |
